As we've seen in previous tutorials, working with SQL databases requires us to be very specific. We have to tell the SQL interpreter what columns to show, for example, and in what order, and if we're joining two tables on the same named-field, we have to specify what seems to be pretty obvious, i.e.
JOIN users ON users.name = people.name.
So it should be no surprise that we have to specify the kind of data we're working with. Just because a column contains
"Jan. 5, 2009" doesn't mean that the database will treat it like an actual date. Hell, a database won't even treat numbers like numbers without some nudging.
In this tutorial, we'll get an overview of how to specify data types in SQL databases. This can get most complicated when dealing with dates and with the
NULL state; in fact, there's a whole separate tutorial on
NULL which you'll want to read.
Note: For this SQL lesson, I will be using MySQL and the Sequel Pro GUI. The queries and concepts should be the same as they are with SQLite. The database we will use consists of five tables:
members- Current U.S. congressmembers as of October 2014
terms- The terms served by the current U.S. congressmembers
social_accounts- social account names for current U.S. congressmembers
twitter_profiles- Twitter profile data for the accounts in
tweets- The most recent 3,200 tweets of each Twitter profile (about 800,000+ tweets altogether)

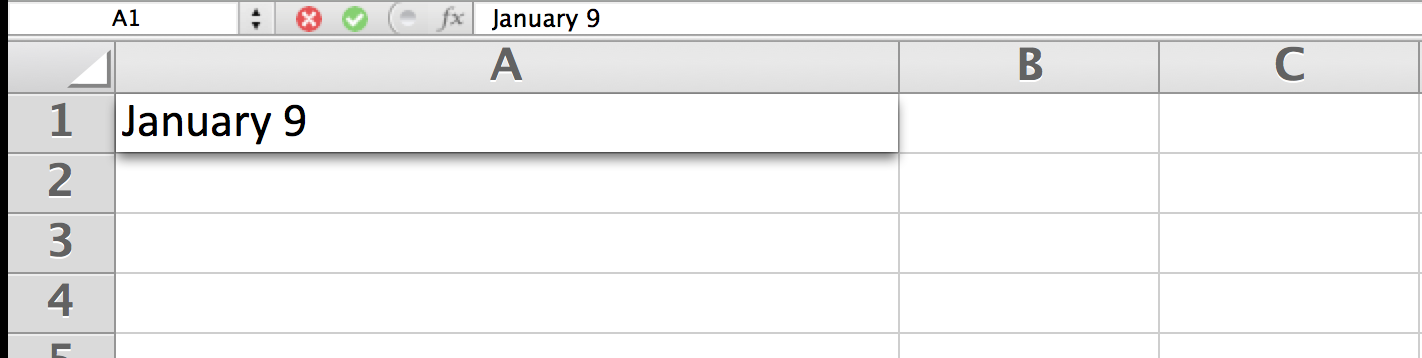

If you've used Excel (or any other modern spreadsheet), you've probably noticed that when you type something that looks like a date:
It will magically guess that you are specifying a date. And in the above example, where I write
"January 9", Excel will helpfully assume that I must mean

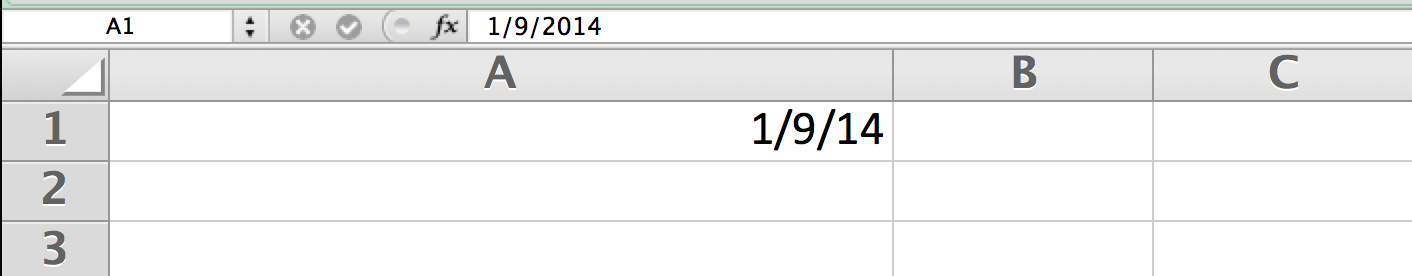

January 9, 2014, and then convert it to the American shorthand for dates:
If I really did mean
"January 4, 2014", then this is a nice convenience. Because it allows me to use Excel's date-based functions, such as
However, if I don't mean an exact date, e.g. I'm using that column to specify annual holidays and occasions that happen every year, well, Excel's auto-conversion can be a bit annoying.
An egregious example of this occurs with numbers. New Jersey's zip codes are 5-digits, like every other U.S. state. However, they start with
08400 for Atlantic City and
07030 for Hoboken. But to Excel,
07030 looks like
7030 with a useless
0, and it will be happy to make an unsolicited conversion for you:
In databases, this can result in some possible problems when trying to join different tables in which
07030 in one table, and
7030 in another. So when importing data into a new table, we have to be specific about the datatypes of each column.
The Structure tab for GUIs
Both SQLite Manager and Sequel Pro have a Structure tab which let you edit the Type of data for each column.
Here's what the Structure tab for SQLite Manager looks like for the
And this is Sequel Pro:
Both SQLite and MySQL (Sequel Pro) share similar terminology for data types. Here's some of the column definitions for
tweets in SQLite:
And in MySQL (Sequel Pro):
Data type definitions
|INTEGER or INT||A whole number||-2, 128, 99999|
|CHAR or VARCHAR||Strings of characters||"J.F.K", "John Malkovich", "042"|
|FLOAT or REAL (SQLite)||Numbers with decimal points||42.2, 90.0, -0.5|
|DATETIME or DATE||Dates/times represented by the ISO standard||2009-11-04, 1999-03-30 16:20:59|
|TEXT or BLOB||This seems like it'd be the same as CHAR or VARCHAR. But TEXT fields are reserved for very large fields of text. Thousands, millions, or even billions of characters.||[Imagine me pasting the entire works of Shakespeare into this column]|
The length of data types
MySQL specifies the size of a column. For a column of type
VARCHAR, i.e. text strings, a length of
10 would mean that the column can hold
Why not make the data columns as big (or long) as possible? For storage and performance reasons. For most of what we cover in this course, though, that is not a real issue. It becomes an issue if you ever decide to be a full-time data developer, or, more likely, you try to work with someone else's database, in which case you might get errors when trying to import data that's too big for a certain field. So file this under the "nice to know, check Google when it causes trouble" folder.
Numbers and string fields are pretty straightforward. But dates and timestamps may cause you considerable grief.
Let's start off easy, with the
tweets table in which
created_at is conveniently defined for you as a type of
DATETIME. All the values follow the ISO 8601 standard.
created_at value of this:
– is equivalent to: October 2nd, 2014 at 2:40 P.M. The ISO standard is used because each country/locale has a different way of specifying the time – e.g.
7/1/2012 can mean a very different date to an American than to a European, nevermind non-Western cultures.
One nice convenience of the ISO standard is that even if there were no
DATETIME type, doing a standard sort on ISO-timestamps will sort them chronologically:
Whereas sorting out the dates written out in English will not work, because the database will attempt to do so alphabetically:
|April 13, 2013 at Nine PM|
|April 13, 2013 at Twelve PM|
|January 10, 2010 at Twelve PM|
Datetime functions in MySQL
The main reason to specify a column as
DATETIME is to have access to a bunch of useful functions. MySQL's functions are similar to Excel's:
SELECT created_at, YEAR(created_at) AS c_year, MONTH(created_at) AS c_month, DAY(created_at) AS c_day, WEEKDAY(created_at) AS c_weekday, HOUR(created_at) AS c_hour FROM tweets ORDER BY retweet_count DESC LIMIT 10
The aliases aren't necessary, but I provide them as an example. And I
ORDER BY a totally unrelated field,
retweet_count, just to get a mix of dates.
WEEKDAY function is a little strange at first (see the documentation here). It returns a number from
0 corresponds to Monday and
6 corresponds to Sunday
Thus, to get a count of only the tweets that occurred on a weekend:
SELECT COUNT(*) from tweets WHERE WEEKDAY(created_at) >= 5
FYI, in the given
tweets table, there are roughly 63,000 weekend tweets versus 790,000 weekday tweets. The total number of tweets divided by 7 (days) is about 120,000 tweets, so our Congressmembers do not spend much of their weekends tweeting, apparently.
Datetime functions in SQLite
So this is one of the places where SQLite is not quite as convenient as MySQL. Yes, there is a
DATETIME column type, but we don't have access to the convenient
HOUR, etc. functions.
Instead, we have to master the
strftime function, which I like to think of as short for "formatting a string from a time value", or, "string from time" . The good news is that
strftime is a function in many other programming languages, including Ruby, PHP, Python, etc. The bad news is, it involves memorizing a long list of format strings.
You can find a list of format strings in the SQLite documentation. Here's some of the key ones:
|'%Y'||The four-digit year||2012|
|'%m'||The two-digit month||07|
|'%d'||The two-digit day of month||31|
|'%H'||The two-digit hour||15|
|'%M'||The two-digit minute||59|
|'%S'||The two-digit second||05|
|'%w'||The day of week, with Sunday starting at 0, Saturday at 6||6|
strftime works is that you pass in two things:
- A specified format; think of this as telling SQLite, "I want you to show me the month and year"
- The date string, e.g. a column name like
created_at, or a literal string like
'2012-03-12 04:12:32 PM'
So to redo the MySQL example in SQLite:
SELECT created_at, strftime('%Y', created_at) AS c_year, strftime('%m', created_at) AS c_month, strftime('%d', created_at) AS c_day, strftime('%w', created_at) AS c_weekday, strftime('%H', created_at) AS c_hour FROM tweets ORDER BY retweet_count DESC LIMIT 10
There are slight differences from MySQL besides the syntax. For example,
c_month will return the string
"04" instead of the number
4 because, well, we're using the
strftime function, i.e. we're creating a string, not a number, from a time value.
Another key difference, whereas MySQL's
WEEKDAY() function designates
0, i.e. the beginning of the week, as Monday, SQLite's
strftime('%w', ...) has
0 for Sunday. Also, again,
strftime returns a string. Therefore, your conditional has to match
'0', not the number
Thus, to count up the tweets that happened on a weekend with SQLite:
SELECT COUNT(*) from tweets WHERE strftime('%w', created_at) IN('0', '6')
Importing dates and times
What happens when you try to import a database that doesn't have the datetime strings in ISO format, e.g. "Jan. 3, 2004" and "Monday, Oct. 13, 1980 7:40 PM"? Bad times. You may need to wrangle/alter the data (using a spreadsheet, or other program) before importing the data.
There's a reason why I've made pre-built SQL files for the tutorials. Importing data in the wild can be a soul-crushing affair, which we'll deal with (maybe) in later lessons.
The NULL state
In both SQLite and MySQL, columns can be defined as "allowing
NULL is best thought of a state, i.e. we don't yet know someone's middle name so we leave it as
NULL. But if someone doesn't have a middle name, we might put an empty string there.
NULL is not equivalent to an empty string nor is it equivalent to the number
This is such an important distinction that we use a different syntax to filter for
NULL values. Check out this separate tutorial I've written.
